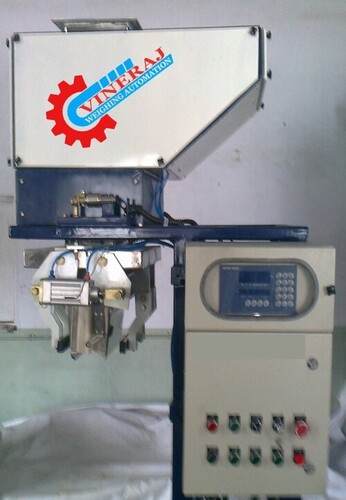

Dual Bagging Machine

Price 600000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dual Bagging Machine Specification

Driven Type
Electric

Dimension (L*W*H)
2200 mm x 1100 mm x 1600 mm

Filling Capacity
5 kg to 50 kg

Input Power
220V/380V

Automatic Grade
Automatic

Weight
Approx. 400 kg

Electric Current Type
AC

Material
Mild Steel / Stainless Steel

Power
3 kW

Product Type
Bagging Machine

Machines Type
Dual Bagging

Condition
New

Sealing Type
Heat Sealing / Stitching

Control System
PLC Controlled Panel

Conveyor Support
Integrated

Safety Feature
Emergency Stop Button, Overload Protection

Display
Digital touch screen interface

Number of Bagging Ports
2 (Dual Synchronised Operation)

Bag Type
Open Mouth or Valve Bags

Application
Powder, Granular, Seeds, Food Grains, Chemicals, Fertilizers

Accuracy
0.2% per bag

Noise Level
Low (below 70 dB)

Dual Bagging Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
Piece

Delivery Time
1 Week

Main Domestic Market
All India

Dual Bagging Machine About

Dual Head Bagging Machine

We are engaged in offering a wide assortment of Dual Head Bagging Machine to our clients. This bagging machine is manufactured by our professionals from high grade raw materials and cutting edge technology in compliance with international standards. The entire range of Dual Head Bagging Machine isknown forsafe & reliable usage, high performance, less maintenance and elevated service life. In order to ensure quality, this machine is stringently tested by our quality controllers on various parameters.

Dual Head Bagging Machine

Food stuff - Oat flakes, Flour, bran, soya, seeds, peanuts (shelled), cashew nuts, lentils

Animal feeds
Chemicals
Plastic/resins
Ground minerals Sugar
Salt (table and rock) Fertilizers
Resins chips, plastic pellets Beans
Grains - wheat, maize, barley Coffee, cocoa

Efficient Dual-Port Bagging

Engineered with two synchronised bagging ports, this machine significantly boosts throughput while maintaining accuracy for diverse materials. The dual operation allows simultaneous filling, making it an ideal solution for high-volume requirements in agricultural, chemical, and food industries.

User-Friendly Digital Control

The digital touch screen interface simplifies operation, allowing users to set parameters, monitor status, and manage multiple bag types with intuitive controls. The integrated PLC panel ensures processes run smoothly, minimizing human error and streamlining changeovers.

Precision and Safety Assured

Achieving precision with an accuracy rate of 0.2% per bag, this machine safeguards your products and enhances yield consistency. For operator safety, it incorporates an emergency stop button and overload protection, maintaining safe and reliable use in demanding environments.

FAQs of Dual Bagging Machine:

Q: How does the Dual Bagging Machine achieve precise filling accuracy?

A: The machine utilizes a PLC-controlled panel and advanced load cell technology, ensuring accuracy up to 0.2% per bag. The digital touch screen allows exact parameter adjustments, minimizing errors and delivering consistent results batch after batch.

Q: What types of bags and materials can this machine handle?

A: It is versatile, suitable for open mouth and valve bags, and supports a wide range of materials including powders, granules, seeds, food grains, chemicals, and fertilizers. The filling capacity ranges from 5 kg to 50 kg per bag.

Q: When should I use heat sealing versus stitching for bag closure?

A: Heat sealing is recommended for plastic or laminated bags, providing a secure, airtight seal. Stitching is suitable for woven or textile bags that require strong mechanical closure. The machine supports both, allowing flexibility based on bag material and product requirements.

Q: Where is this machine ideally installed, and how much space does it require?

A: This machine is designed for use in industrial settings like factories, processing plants, or warehouses. With dimensions of 2200 mm (L) x 1100 mm (W) x 1600 mm (H), ensure adequate floor space for safe operation and easy access to the integrated conveyor.

Q: What is the process for changing material types or bag sizes?

A: The digital interface allows operators to quickly adjust filling parameters and select the desired bag size. PLC system memory can store multiple presets, making transitions between products or bag sizes efficient and hassle-free.

Q: How does the integrated conveyor support benefit my packaging line?

A: The conveyor ensures smooth and continuous movement of filled bags, reducing manual labor and increasing throughput. This automation supports faster, safer, and more consistent handling from filling to sealing or stitching.
