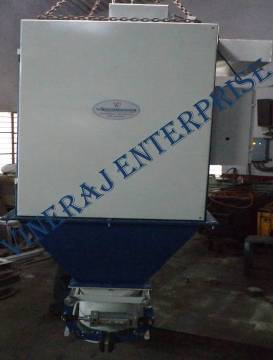

Net Type Bagging Machine

Net Type Bagging Machine
Net Type Bagging Machine
Product Code : 07
Brand Name : VINERAJ ENTERPRISE
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash in Advance (CID), Cheque, Others
  • Supply Ability
  • As per client requirements Per Month
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
Product Description

We feel proud to introduce ourselves as the leading manufacturer and supplier of Net Type Bagging Machine. This machine is known for compact design, sturdy construction, high tensile strength, smooth operation and ability to withstand harsh conditions. To manufacture this Net Type Bagging Machine, our professionals use world class components with the help of cutting edge technology under the guidance of experienced professionals. This machine can be availed by our clients as per their application requirements within promised time frame.

Net Type Bagging Machine

A net bagging machine weighs the product independently to the bag. The discharge clamp is a separate construction to the weigh bin, which means that, as the operator fits a bag to the bottom discharge clamp, the product has already commenced filling to the target weight. This produces superior final bag accuracy and greater bagging rates per minute than gross bagging machines.

The unit is totally electronic from the load cells to the weigh indicator, which allows seamless interfacing with on-site computer management systems, if required.

Ideal for packing:

Food stuff - Oat flakes, Flour, bran, soya, seeds, peanuts (shelled), cashew nuts, lentils

  • Animal feeds
  • Chemicals Plastic/resins
  • Ground minerals
  • Sugar
  • Salt (table and rock)
  • Fertilizers
  • Resins chips, plastic pellets
  • Beans
  • Grains - wheat, maize, barley
  • Coffee, cocoa


Technical Specifications


System

Net Type Bagging Machine

Capacity

Max:1000 kg

Min: 10kg

Resolution (e)

10 gr.

Accuracy

+ 20 gr.

Number of Fillings

5-6 Bags / min

Filling Valve

Pneumatically opreated

Features of the Control Panel

Coarse, Fine, In-flight setting & Weight achieved / Cumulative quantity display

Load Sensor

Load cell

Operating Temperature

10o C to 50o C

Power

230 V AC, 50 Hz

Air Supply

5 - 6 kg / cm2

Note : Accuracy and Number of filling are based on the properties and flow characteristics of the materials
